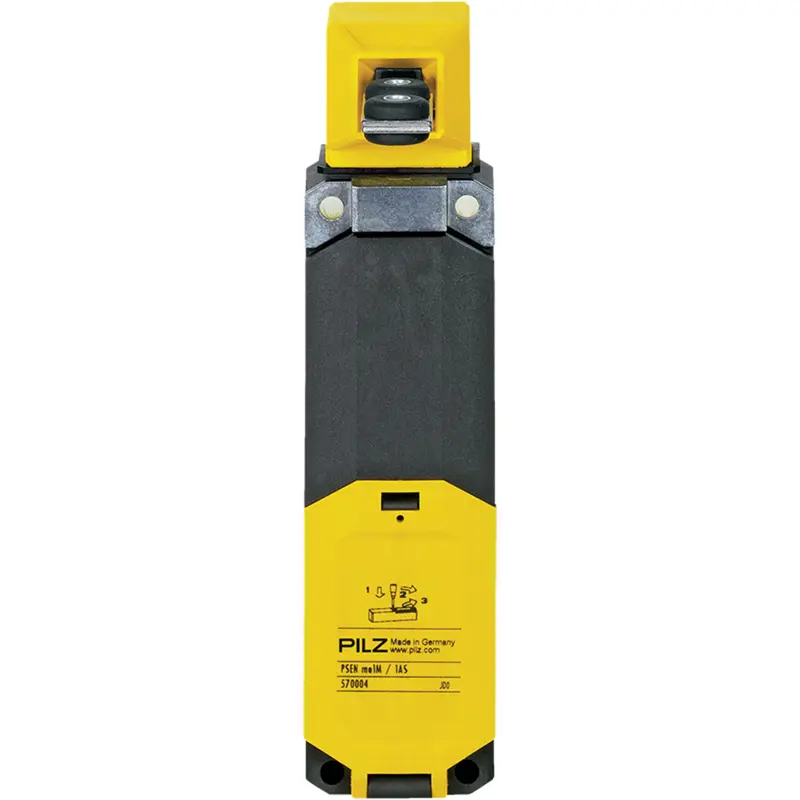

PILZ PSENmech Mechanical Safety Switch with Guard Lock PSEN me1M/1AS is designed for the safe monitoring of movable guarding.
Performance Parameters: This switch features spring-loaded locking with a pull-out force of 27N and a self-locking force of 1500N, including an auxiliary release function. It operates on 24V AC/DC power supply, with power consumption of 4.4VA (AC) and 4.4W (DC). Maximum voltage at AC1 is 240V, and maximum current is 2.5A.
Application Areas: PSEN me1M/1AS is primarily used in classic mechanical engineering applications, such as monitoring safety doors on lathes or presses, or ensuring the safe positioning of machine tool slides or carriages.
Product Advantages: When used with PILZ evaluation devices, it provides a Category 4 safety solution compliant with EN 954-1 standards. Featuring multiple actuators and operation directions, it offers flexible and rapid installation. With built-in tamper protection, it ensures a long product lifespan.
| Parameter | Details |
|---|---|
| Product ID | 570004 |
| Safety Gate System | With guard locking |
| Actuator Type | Standard |
| Interlocking Principle | Magnetic force |
| Contacts | 2 N/O (Normally Open), 2 N/C (Normally Closed) |
| Supply Voltage | 24 V AC/DC |
| Approval | CCC, CE, BG, CC SAUS, EAC (Eurasian) |
| Power Consumption (AC) | 4.4 VA |
| Power Consumption (DC) | 4.4 W |
| Relay Outputs |
Utilisation cat. AC/DC 1 stand. EN 60947 - 4 - 1 Voltage AC1 safety cont. 240 V Max. current AC1 safety cont. 2.5 A Utilisation cat. AC 15 / DC 13 st a. EN 60947 - 5 - 1 Voltage AC15 safety cont. 230 V Max. current AC15 safety cont. 2.5 A |
| Ambient Temperature | -25 - 70 °C |
| Protection Type, Housing | IP67 |
| Holding Force | 1500 N |
| Connection Terminal | Spring - loaded terminal |
| Terminal Style | Fixed |
| Height Dimension | 184 mm |
| Width Dimension | 42.5 mm |
| Depth Dimension | 51 mm |
| Net Weight | 341 g |
| Gross Weight | 421 g |
| RoHS Conformity | Yes |
| Reach Compliance | Contains min. 1 SVHC - substance (Phenol, % - part of the pollutant > 0.1, CAS No. 84852 - 15 - 3) |
| WEEE Classification (08 / 2018) | 5 devices (feed size < 50 cm) |
| Harmonized System Code | 85365080 |
| Eclass Version | E class - 9.1 |
| Eclass Reference Feature | 27272603 |
| Etim Version | Etim - 7.0 |
| Etim Reference Group | EG000026 |
| Etim Reference Feature | EC002593 |
Model: PILZ PSENmech mechanical safety switch with guard locking PSEN me1M/1AS
Product ID: 570004
GTIN: 4046548002874
Safety gate system with guard locking, with standard actuator, interlocking principle magnetic force, contacts 2 n/o, 2 n/c, supply voltage 24 V AC/DC.
Dimensions: 42.5 * 184 * 51mm
Net Weight: 341g
Gross Weight: 421g
