China OMRON MicroHAWK F430 Series Industrial Ethernet Smart Camera F430-F000L12M-NNA Manufacturer, Exporters

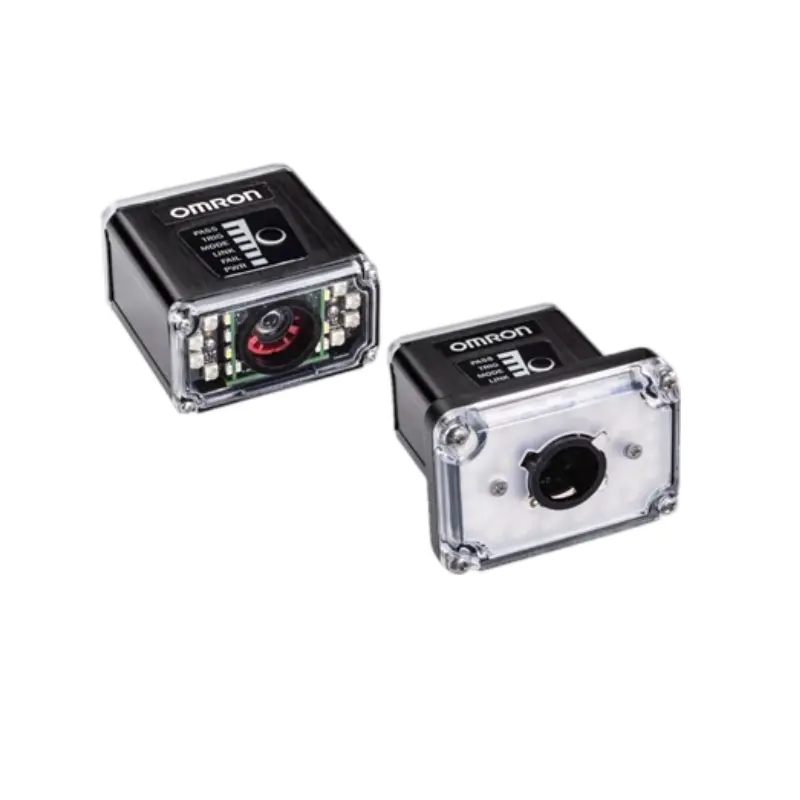

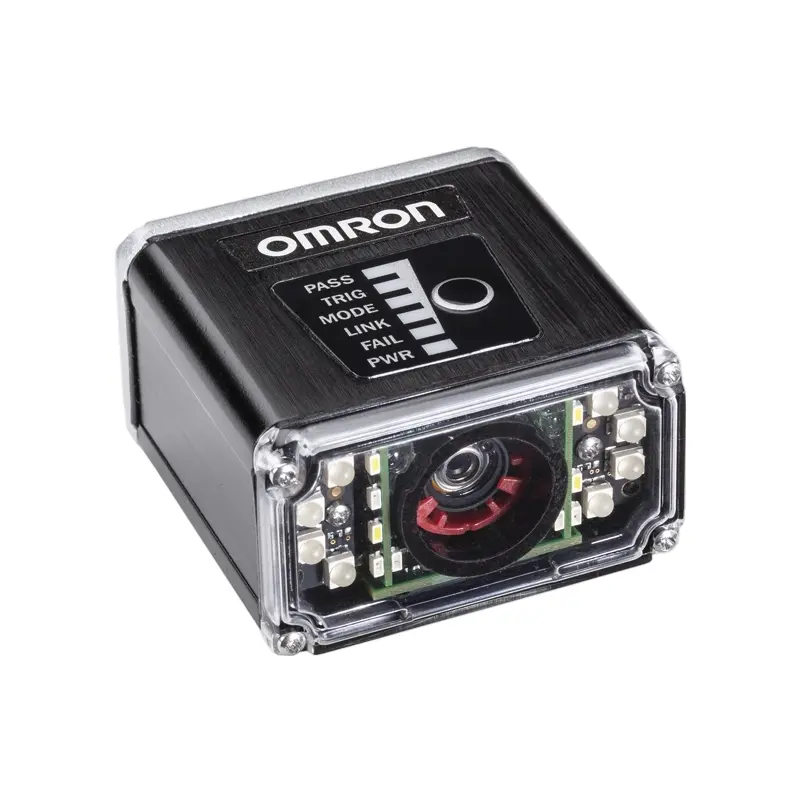

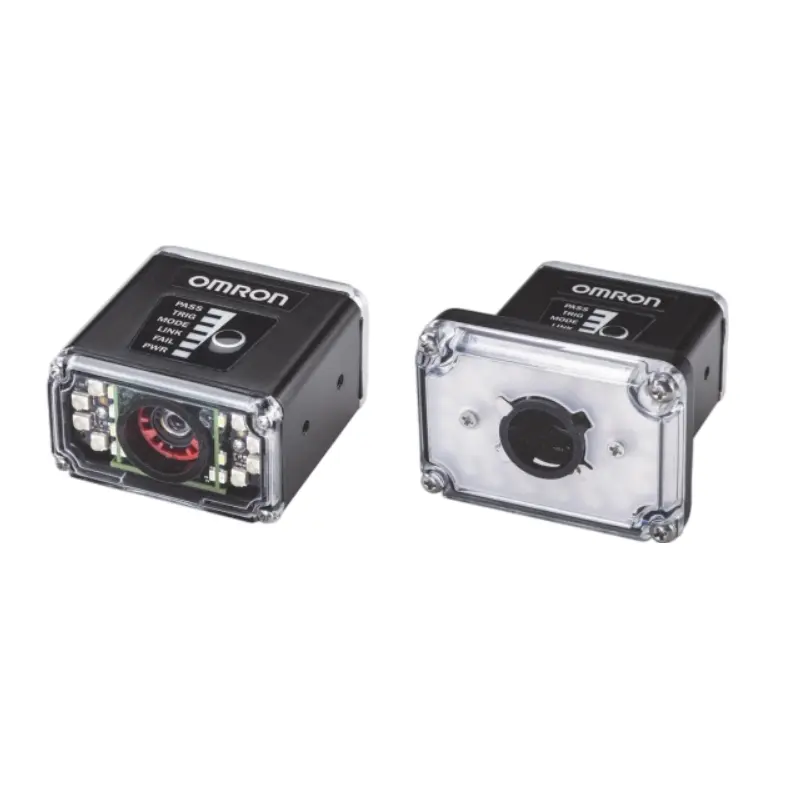

The MicroHAWK F430 Industrial Ethernet Smart Camera is the smallest true Industrial Ethernet smart camera with IP65/IP67 protection ratings. The primary benefits of using smart cameras are ease of use, low cost, and compact size, enabling rapid installation of complete vision solutions within machinery. The MicroHAWK F430 boasts an ultra-compact footprint (44.5 mm x 44.5 mm x 25.4 mm) with expanded functionality. It incorporates Omron MicroScan's machine vision tool library to solve diverse inspection challenges.

Send Inquiry

Product Description

Overview

The MicroHAWK F430 Industrial Ethernet Smart Camera is the smallest true Industrial Ethernet smart camera with IP65/IP67 protection ratings. The primary benefits of using smart cameras are ease of use, low cost, and compact size, enabling rapid installation of complete vision solutions within machinery. The MicroHAWK F430 boasts an ultra-compact footprint (44.5 mm x 44.5 mm x 25.4 mm) with expanded functionality. It incorporates a powerful machine vision tool library to solve diverse inspection challenges.

Key Features

IP65/67 protection rating for reliable dust and water resistance.
Supports Gigabit Ethernet, serial RS-232, EtherNet/IP, Ethernet TCP/IP, and PROFINET.
Optional liquid lens auto-focus and external LED illumination (red, white, blue, infrared).
Integrated aiming and read/pass LED indicators for real-time tracking.
5 to 30 VDC power input with optional passive Power over Ethernet (PoE).
High-speed 800 MHz processor with capability for long-distance autofocus.
Ideal for vision inspection, measurement, presence detection, robot guidance, OCR/OCV, and code verification.
Programmable via AutoVISION software for simple tasks or Visionscape software for advanced applications.
Features Non-Linear Calibration (NLC) to improve measurement and positioning accuracy by 20 times.

The MicroHAWK® platform delivers cutting-edge machine vision capabilities in the world's smallest smart camera. Built on the highest-performance imaging engine in its class, MicroHAWK cameras feature fully integrated optics, processors, lighting, and communications. They offer a range of modular hardware options to tackle any inspection task across three miniature form factors.

Specifications

Parameters	Details
Camera Family	F430
Number of Pixels	1.2 MP
Camera Type	Monochrome
Autofocus	Yes
Focus Distance	75 - 1200 mm
Focal Length	16 mm
Field of View (Width)	24 - 436 mm
Frame Rate	40 fps
Shutter Type	Global
Illumination	Inner LEDs only
Software Option	Autovision
Image Sensor Type	CMOS
Image Width	1280 pixels
Image Height	960 pixels
Communication Ports	Ethernet/IP, Ethernet TCP/IP, Profinet slave, Serial RS-232C
Degree of Protection (IP)	IP65/IP67
Application	Code reading, Code verification, Counting, Measurement inspection, OCR/OCV, Presence/Absence

Models & Delivery Information

Available Models:

MicroHAWK F430 Series Industrial Ethernet Smart Camera F430-F000L12M-NNA / F430-F000L12M-NNS / F430-F000L12M-NNV

Dimensions

44.5 mm x 44.5 mm x 25.4 mm

Battery Specifications

Without Battery

Delivery Information

Delivery details typically cover standard lead times, protective industrial packaging, and shipping options configured according to buyer location and order specifications.

Manuals & Resources

MicroHAWK F430 Series Industrial Ethernet Smart Camera F430-F000L12M-NNA Datasheet.pdf

Download

Frequently Asked Questions (FAQ)

What is the IP protection rating of the MicroHAWK F430?

The MicroHAWK F430 features IP65 and IP67 protection ratings, rendering it highly resistant to dust and water ingress, suitable for demanding industrial applications.

Does this smart camera support autofocus?

Yes, it features an optional liquid lens auto-focus system with an effective focus distance ranging from 75 mm to 1200 mm for flexible configuration.

Which industrial communication protocols are compatible?

It supports multiple communication standards, including EtherNet/IP, Ethernet TCP/IP, PROFINET, and serial RS-232C for seamless industrial networking.

What software is used to program the MicroHAWK F430?

It can be configured using AutoVISION software for quick and straightforward tasks, or Visionscape software for highly advanced machine vision programming. Web monitoring is also supported via Network Monitor.

What makes Non-Linear Calibration (NLC) beneficial?

NLC converts measurements from pixels to real-world units, correcting lens distortions and aberrations. This increases the positioning and measurement precision of the camera by up to 20 times.
