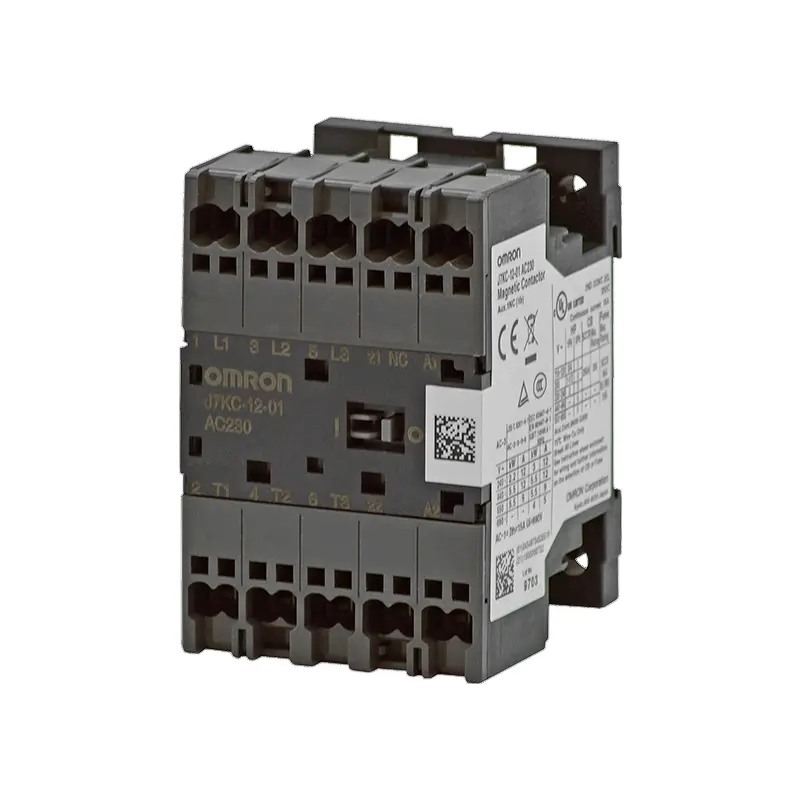

The OMRON J7KC Series Magnetic Contactor J7KC-12-01 AC100 is an AC-operated electromagnetic contactor measuring just 45mm × 46mm × 67.5mm, making it the world's smallest in its category. Featuring Push-In Plus wiring technology, it significantly reduces wiring and maintenance time. It is ideally suited for controlling AC-3 class motors with power ratings up to 2.2kW (200-240VAC) and 5.5kW (380-440VAC), and can also function as a primary-side switch. The device achieves high contact reliability (minimum 5VDC, 3mA) through split contacts, incorporates a standard coil surge absorber unit, and complies with major safety standard certifications. Furthermore, its mirror contact mechanism with feedback functionality renders it suitable for safety-critical applications, offering broad compatibility with diverse equipment including conveyor motors, compressor motors, pump motors, fan motors, and gantry motors.
World's smallest in its category, measuring just 45mm × 46mm × 67.5mm to save critical panel space.
Significantly reduces wiring complexity and maintenance time with secure connection retention.
Includes mirror contact mechanism for feedback functionality in safety-critical circuits.
| Parameter | Value / Rating |
|---|---|
| Rated Insulation Voltage | 620 VAC |
| Rated Impulse Dielectric Strength | 6 kV |
| Rated Frequency | 50/60 Hz |
| Vibration Resistance | Vibration: 10 to 55 Hz, acceleration: 15 m/s² |
| Shock Resistance | Shock value 50 m/s² |
| Contact Form | Double break form (main circuit: single contacts, auxiliary circuit: bifurcated contacts) |
| Contact Material | Ag alloy |
| Mirror Contact | Available * |
| Degree of Protection | IP20 (IEC60529) |
| Operating Temperature | -10 to +55°C (daily average shall not exceed 35°C) |
| Ambient Storage Temperature | -40 to +65°C (no condensation or icing) |
| Relative Humidity | 45% to 85% RH (no condensation or icing) |
| Altitude | 2000 m max. |
| Weight | 160 g (J7KC-AC) / 190 g (J7KC-DC) / 400 g (J7KCR-AC) / 460 g (J7KCR-DC) |
| Applicable Standards | Safety standards: EN 60947-4-1 (IEC 60947-4-1), UL 60947-4-1, CSA 22.2 No.60947-4-1, CCC, GB/T 14048.4 |
| Model Specification | J7KC-12-01 AC100 | J7KC-12-01 AC110 | J7KC-12-01 AC120 |
|---|---|---|---|
| Max Load Current | 5-15A | 5-15A | 5-15A |
| Max Rated Load Voltage | 200-400 VAC | 200-400 VAC | 200-400 VAC |
| Input Voltage Range | 100-110 VAC | 110-120 VAC | 120-130 VAC |
| Max Operating Input Voltage | 85-121 VAC | 94-132 VAC | 102-143 VAC |
| Auxiliary Contact | SPST-1NC | SPST-1NC | SPST-1NC |
It is primarily designed for controlling AC-3 class motors up to 2.2kW (200-240VAC) and 5.5kW (380-440VAC). It is highly compatible with conveyor motors, compressor motors, pump motors, fan motors, and gantry motors.
The J7KC series is the world's smallest in its category, measuring only 45mm × 46mm × 67.5mm. This micro-size layout allows for significant space-saving within electrical panels.
Push-In Plus technology is a proprietary connection method by OMRON that enables quick wiring by inserting wires directly. It eliminates screw retightening, drastically reducing installation time and ensuring reliable contact against vibrations.
Yes, it features a mirror contact mechanism with reliable feedback functionality, making it well-suited for safety-critical circuits and machinery control applications.
The contactor operates safely between -10°C and +55°C (daily average < 35°C) and can be stored in temperatures from -40°C to +65°C under non-condensing environments with relative humidity of 45% to 85%.
It complies with major international safety standards, including EN 60947-4-1 (IEC 60947-4-1), UL 60947-4-1, CSA 22.2 No.60947-4-1, and CCC (GB/T 14048.4).
