For over 35 years, our team has been dedicated to designing and manufacturing cutting-edge optical components for laser interferometer systems. Leveraging our engineering expertise, component fabrication and assembly capabilities, and advanced optical manufacturing facility, we deliver leading-edge optical solutions that provide:
When performance is critical and failure is not an option, system designers know they can rely on our precision optical components and assemblies. With hundreds of successful designs and thousands of deliveries, we understand the challenges of world-class opto-mechanical design and manufacturing.
Our thorough testing protocols provide customers with unparalleled confidence in product performance and reliability. More importantly, our products and services are backed by a global engineering company with three decades of precision optical design and manufacturing expertise.
When your system demands ultimate precision and reliability in real-world applications, our new monolithic optical designs deliver significant advantages. Seamless integration from initial concept to volume production, combined with field experience from over 1,500 successfully assembled solutions, uniquely qualifies us to help you maximize the benefits of monolithic technology.
High-volume production process control enables manufacturing of nearly identical high-precision components, simplifying your manufacturing workflow while minimizing inventory, support, and replacement costs.
| Precision Optics and Assemblies Specifications | |
|---|---|
| Material | BK7, fused silica, other optical glass |
| Dimension Tolerance | ±0.2 mm |
| Thickness Tolerance | ±0.2 mm |
| Flatness | λ/20 @632.8 nm |
| Surface Quality | 20/10 scratches and dig |
| Transmitted Wavefront | λ/10 @ 632.8 nm |
| Parallelism | <1 arc seconds |
| Polarizing Beam Splitters | |
| Material | BK7, fused silica, other optical glass |
| Dimension Tolerance | ±0.2mm |
| Extinction Ratio | >500:1 |
| Flatness | λ/20 @ 632.8 nm |
| Surface Quality | 20/10 scratches and dig |
| Transmitted Wavefront | λ/8 @ 632.8 nm |
| Principal Transmittance | Tp > 95% and Ts < 1% |
| Principal Reflectance | Rs > 98% and Rp < 1% |
| Beam Deviation | < 20 arc seconds |

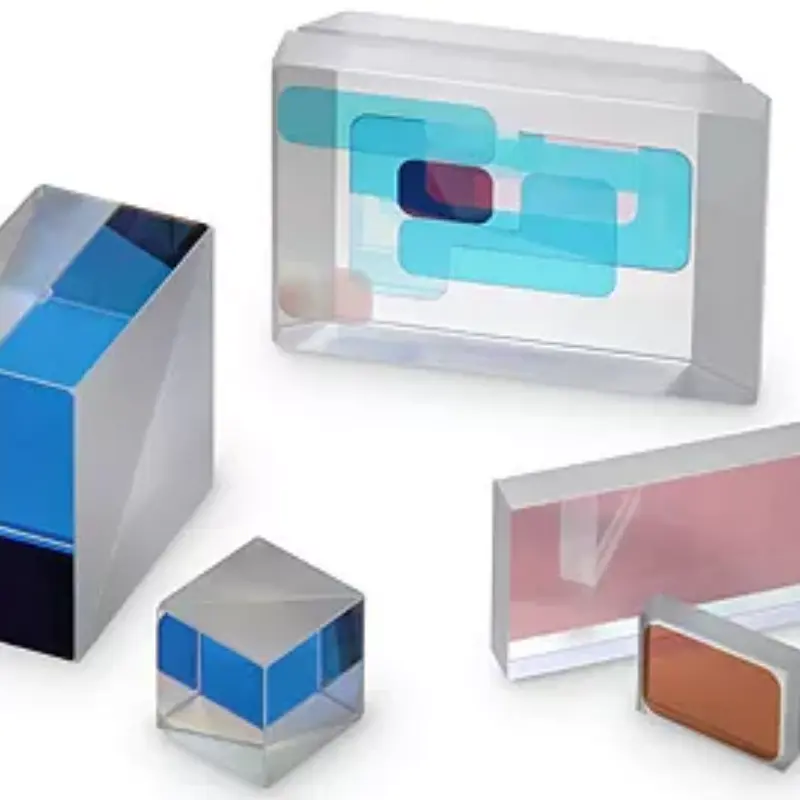

Model: Precision Optics and Assemblies
Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.
We utilize high-quality BK7, fused silica, and other premium optical glasses to ensure optimal optical properties, stability, and transmission rates.
Our standard precision optical components provide a flatness of λ/20 @ 632.8 nm, which guarantees high precision for laser interferometer systems.
Monolithic designs deliver exceptional mechanical stability and thermal robustness, eliminating alignment drift and offering significant advantages in demanding real-world environments.
The polarizing beam splitters feature an extinction ratio of greater than 500:1, providing excellent polarization separation performance.
Through high-precision production process control, we manufacture nearly identical components, which simplifies installation workflows and ensures consistent system-level reliability.
