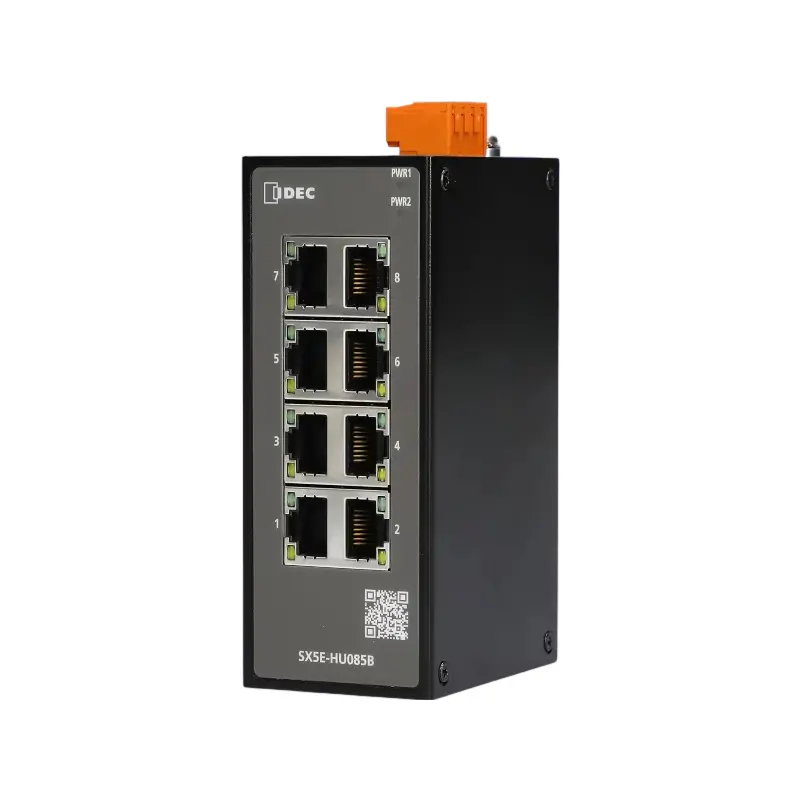

Equipped with 8 RJ45 ports. Each port supports a 10/100Mbps fast Ethernet transmission rate, applicable to a variety of common Ethernet connection needs.
Supports QoS to guarantee priority of Ethernet/IP packets, easily controlled through an external dip switch. Includes IGMP snooping to filter unnecessary traffic.
Redundant power inputs allow backup power sourcing, ensuring the network maintains zero-downtime operation during power failures.
Features a wide operating temperature range (-40°C to +75°C), IP30 protection, and a rugged metal shell resistant to high/low temperatures, dust, and vibrations.
Detects ring connection issues and discards duplicate messages. This function can be enabled or disabled via an external dip switch.
Supports DIN-rail installation. Dimensions are 45.6mm × 114.5mm × 68mm (excluding connectors and DIN-rail mounting kit), weighing less than 0.25 kg.
| Rated Input Voltage | 24V DC, 24V AC |
| Voltage Tolerance | 12-48V DC, 18-30V AC |
| Power Consumption | 4.1W |
| Ethernet Standard | IEEE802.3U(100BASE-TX)/IEEE802.3i (10BASE-T) compliant |
| Data Transfer Speed | 10Mbps/100Mbps (Auto-negotiation function) |
| Communication Method | All ports full/half duplex (Auto-negotiation function) |
| Number of Ports | 8 |
| Frame Transfer Method | Store and forward |
| Throughput | 1.2Mpps |
| Address Table | 2,048 entries |
| Buffer Size | 4Mbits |
| EMI/EMS | FCC CFR47 Part 15, EN55022, CISPR22, Class A |
| Electrostatic discharge: +6kV (contact), +8kV (air) (IEC61000-4-2) | |
| Radiation electromagnetic field: 10V/m (80MHz-2GHz), 3V/m (2GHz-2.7GHz) (IEC61000-4-3) | |
| EFTB: +2kV (Power Port), +1kV (Data Port) (IEC61000-4-4) | |
| Lightning surge: +1kV/DM, +2kV/CM (Power Port), +1kV (Data Port) (IEC61000-4-5) | |
| RF conducted immunity: 10V (150kHz-80MHz) (IEC61000-4-6) | |
| Vibration Resistance | 5Hz to 9Hz: 3.5mm, 9Hz to 150Hz: 2.0G (IEC60068-2-6) |
| Shock Resistance | 150m/s² 11ms (IEC60068-2-27) |
| Operating Temperature | -40 to +75°C (no freezing) |
| Operating Humidity | 5 to 95% RH (no condensation) |
| Storage Temperature | -40 to +85°C (no freezing) |
| Mounting | DIN rail / panel mounting |
| Degree of Protection | IP30 |
| Weight (approx.) | 250g |
Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.
The switch is equipped with 8 RJ45 ports. Each port supports a data transfer speed of 10/100Mbps with auto-negotiation and half/full-duplex communication methods.
Yes. The switch features redundant power inputs (12-48V DC, 18-30V AC) which allow for backup power sources to maintain zero-downtime network operations in the event of a power supply failure.
The switch supports standard DIN-rail and panel mounting. Its dimensions are 45.6mm × 114.5mm × 68mm (excluding connectors and DIN-rail mounting kit), and it weighs approximately 250g.
Yes, it is designed for harsh environments. It features an IP30 protection rated metal housing, vibration resistance, and can operate within a wide temperature range of -40°C to +75°C (no freezing).
It features a QoS function that prioritizes Ethernet/IP packets and an IGMP snooping function to filter traffic and reduce unnecessary data transmission. It also includes broadcast storm protection. Both QoS and broadcast storm protection can be configured via external dip switches.
