It is an all-in-one calibration solution tailored for process industries, combining pressure generation/measurement, electrical signal calibration, loop power supply, and data management in a portable, rugged device. It serves as a primary calibration tool for technicians and metrologists, replacing multiple single-function devices to streamline workflows.
Pressure Calibration: Compatible with interchangeable PM620 pressure modules (range: 2.5kPa-100MPa) for gauge, absolute, or vacuum measurement. Pressure accuracy reaches up to ±0.005% FS, ensuring traceable results.
Electrical Signal Calibration: Covers voltage (0-10V/±10V), current (0-24mA sourcing/sinking), resistance (0-100kΩ), thermocouples (J/K/T/E/R/S/B/N), and RTDs (PT100/PT1000), meeting diverse sensor and instrument calibration needs.
Integrated Functions: Features a 24VDC loop power supply (50mA max) for powering transmitters during calibration. Supports HART and MODBUS communication for configuring smart devices directly.
User-Friendly Interface: Equipped with a 4.3-inch color LCD touchscreen (480×272 resolution) that works with gloves. The intuitive UI allows access to any function in 3 clicks or fewer.
Portability & Durability: Weighs 4.2kg (9.3lb) with dimensions 350mm×170mm×160mm, featuring an iconic handle for easy transport. IP54 protection rating ensures dust and splash resistance, compliant with industrial environmental standards.
Power Flexibility: Runs on a 3800mAh lithium-ion battery (12-26 hours of continuous use) or 8 AA batteries (backup). An AC adapter (100-240VAC) supports stationary use.
Storage & Logging: 8GB internal memory stores over 100,000 calibration records and automated test procedures. Data logging functionality captures real-time measurement data for analysis.
Communication Interfaces: Includes USB (host/client), Ethernet (TCP/IP), and Bluetooth as standard. Optional Wi-Fi enables wireless data transfer to PCs or cloud platforms.
Widely used in petrochemical, power generation, pharmaceutical, and aerospace industries. It calibrates pressure transmitters, gauges, switches, temperature sensors, and electrical instruments. It also serves as a transfer standard in metrology laboratories, ensuring consistent accuracy across calibration workflows.
| Parameter | Details |
|---|---|
| Processor | 800 MHz Arm Cortex - A8 processor |
| Memory | 512 MB 800 MHz SDRAM, 4 GB internal flash memory, 8 GB removable micro SD card (accepts cards up to 32 GB) |
| Display | 110 mm (4.3 in) diagonal, 480 x 800 pixels LCD, color touch - screen protected by 2 mm toughened glass |
| Languages | English (default), Chinese, French, German, Italian, Portuguese, Russian, Spanish, Dutch, Japanese |
| Operating Temperature | - 10 °C to 50 °C (14 °F to 122 °F) |
| Storage Temperature | - 20 °C to 70 °C (- 4 °F to 158 °F) |
| Power Supply | Lithium - polymer battery (GE part number: IO620 - Battery), capacity: 5040 mAh (minimum), 5280 mAh (typical), nominal voltage: 3.7 V. Charge temperature: 0 °C to 40 °C (32 °F to 104 °F), discharge temperature: - 20 °C to 60 °C (- 4 °F to 140 °F) |
| Dimensions (L x W x H) | 183 x 114 x 42 mm (7.2 x 4.5 x 1.7 in) |
| Weight | 575 g (1.3 lb) battery included |
| Maximum Voltage Measurement | 30 V DC / 300 V AC (DPI620G), 300 V (DPI620G - IS), 600 V (DPI620G - L) |
| Maximum Current Measurement | 20 mA (DPI620G), 110 mA (DPI620G - IS), 300 mA (DPI620G - L) |
| Maximum Pressure Measurement | 1000 bar |
| Battery Life | Approximately 12 hours continuous for measurement functions (channel 1), approximately 7 hours for mA measurement (channel 2, 24 V supply at 12 mA) |
| Ingress Protection | IP55 |
| Shock / Vibration | Complies with BS EN 61010 - 1:2010; Mil - PRF - 28800 F for class II equipment, 1 m drop tested |
| EMC | Complies with BS EN 61326 - 1:2006 |
| Electrical Safety | Complies with BS EN 61010 - 1:2010 |
| Pressure Safety | Pressure Equipment Directive - class: Sound Engineering Practice (SEP) |

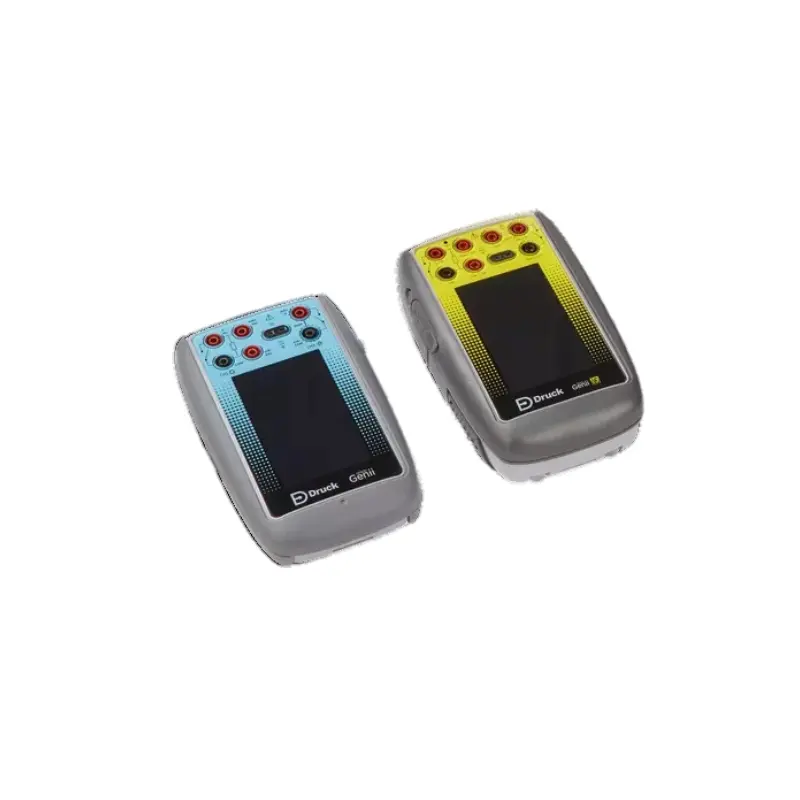

Models: Druck DPI620G Series DPI620G Multifunction calibrator
DPI620G Standard Size: 186 x 115.5 x 42.5 mm (7.3 x 4.5 x 1.7 in) | Weight: 675g (1.5 lb) - battery included
DPI620G-IS Intrinsically Safe Size: 183 x 114 x 55 mm (7.2 x 4.5 x 2.2 in) | Weight: 1.1 kg (2.4 lb) - battery included
