China DELTA MOOVase PM3000 Power Module Exporters, Exporter

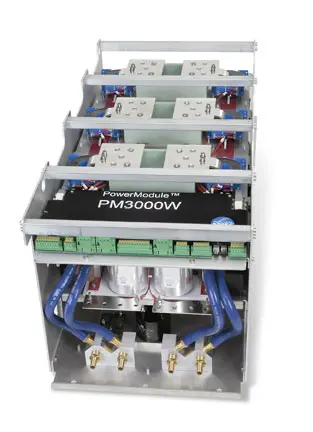

DELTA MOOVase PM3000 Power Module, a highly efficient modular charging unit specifically engineered for forklift applications. Designed for installation within charging cabinets, each module delivers up to 3 kilowatts or 70 amperes of power. The module is simply controlled via CAN bus by the system controller and is capable of charging multiple battery types.

Send Inquiry

Product Description

Overview

This charging device combines proven safety and reliability, having completed millions of successful charging cycles. Its advanced safety design and error detection mechanisms comprehensively safeguard users, batteries, and the charger itself. Featuring a steel housing with a user-serviceable fan design, it is suited for demanding industrial environments, while arc-resistant technology significantly extends connector lifespan. Employing an expandable modular design, the unit supports achieving target charging currents through parallel connections. It features a redundant operating mode enabling power sharing between installed modules, while efficiency can be enhanced by deactivating individual modules. Simplified integration is achieved via CAN bus support for seamless system controller management and transmission of fault and warning information. All accompanying connectors adhere to readily available standard specifications. Furthermore, the unit offers 480V/400V AC variants to accommodate global three-phase power supplies, holds safety and electromagnetic compatibility certifications for North America, Europe, and Australia, and achieves efficiency exceeding CEC standard requirements.

Models & Product Info

MOOVase PM3000 Power Module: A highly efficient modular charging unit specifically engineered for forklift applications.

Technical Specifications

Environmental Conditions
Operating Temperature	-10°C to +50°C (+14 °F to +122 °F)
Storage Temperature	-40°C to +85°C (-40 °F to +185 °F)
Relative Humidity	15% to 85%, non-condensing
Maximum Operating Altitude	3000 m (9842.52 ft)
Mechanical Design
Dimensions (L x W x H)	333 x 203 x 77 mm (13.1 x 8.0 x 3.0 in) / 375 mm (14.8 in) including front panel
Weight	4.2 kg (9.3 lb)
Cooling	Forced air, internal DC fan
LED Indicators	Yes
Communication Connector	TE Micro-match for CAN bus
AC Input Connector	TE Mate-n-lok 5-pin
DC Output Connector	Molex Extreme Guardian 2-pin
Safety & Standards
Protection Class	Class 1
EMC Emissions	FCC Part 15 Subpart B, EN 61000-6-4 (EN 55011/32)
EMC Immunity	EN 61000-6-2

Delivery Information

Dimensions

333 * 203 * 77 mm

Weight

4.2 kg

Battery Parameters

Without battery

Note: The delivery cycle of industrial products is influenced by various factors, such as the inventory status of the products, the scale of the order quantity, the region where the customers are located, and the choice of transportation methods.

Manuals + Resources

DELTA MOOVase PM3000 Power Module datasheet.pdf

Download

Frequently Asked Questions

What applications is the PM3000 Power Module designed for?

The MOOVase PM3000 is a highly efficient modular charging unit specifically engineered for industrial forklift applications.

How does the modular design benefit charging operations?

The unit utilizes an expandable modular design supporting parallel connections to achieve target charging currents. It features a redundant operating mode that enables power sharing between modules, and allows individual modules to be deactivated to enhance overall efficiency.

What are the input power options and safety certifications?

It offers 480V/400V AC variants to accommodate global three-phase power supplies, holds safety and electromagnetic compatibility certifications for North America, Europe, and Australia, and exceeds CEC standard efficiency requirements.

What are the physical dimensions and cooling specifications?

The dimensions are 333 x 203 x 77 mm (excluding front panel), weighing 4.2 kg. The module is cooled via forced air using an internal DC fan.

How does the charger communicate with the system?

Simplified integration is achieved through CAN bus support via a TE Micro-match connector, allowing for seamless system controller management and the transmission of fault and warning information.
