| Parameter Specifications | |
|---|---|

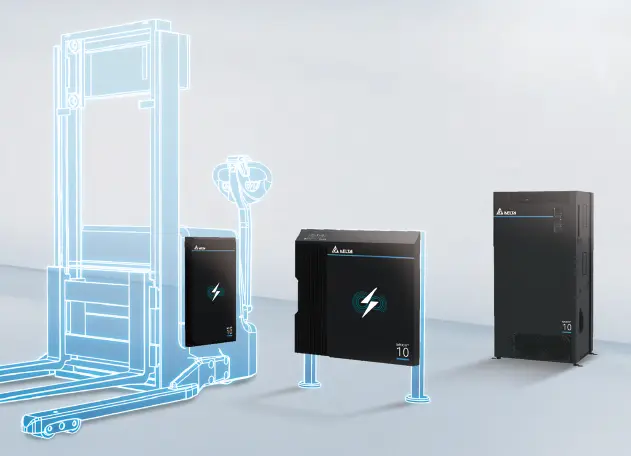

| Product Line | MOOVair Wireless Charging System |
| Wireless Primary Box | EOE17010813 |
| Wireless Primary Pad | EOE17010951 |
| 24/36 VDC Wireless Secondary Unit | EOE17011077 |
| 50VDC Wireless Secondary Unit | EOE17010950 |
| AC Input Unit | Wireless Primary Box (WPB) |
| AC Input Rated Voltage | 400 to 480 V 3-phase |
| AC Input Voltage Range | 360 to 528 V 3-phase |
| AC Input Frequency | 47 Hz to 63 Hz |
| Maximum AC Input Current | 18 A |
| Power Factor (100% Load) | 0.95 |
| Peak Efficiency | > 92% |
| Standby Power | ≤ 10 W |
| Suitable Battery Types | All with Battery Management System (BMS) |
| Output Protection | Over voltage, over current, short circuit, reverse connection |
| Parallel Operation | Available on request |
| Standby Power * | <2 W |
| Charging Control Modes | via CANopen or Ethernet |
| Mechanical & Environment Specs | |
| 24/36 DC WSU at 24 VDC | 135 +5 to 185 +5 mm (5.3±0.2 to 7.3±0.2 in) |
| 24/36 VDC WSU at 36 VDC | 105 +5 to 155 +5 mm (4.1±0.2 to 6.1±0.2 in) |
| 50VDC WSU | 105 +5 to 155 +5 mm (4.1±0.2 to 6.1±0.2 in) |
| Maximum Alignment Tolerance | ± 50 mm (± 2.0 in) up/down and left/right |
| Dimensions (LxWxH) | WPB: 1,050 x 550 x 400 mm (41.3 x 21.7 x 15.7 in) WPP: 665 x 695 x 75 mm (26.1 x 27.4 x 2.95 in) WSU: 565 x 327 x 50 mm (22.2 x 12.9 x 2 in) |
| Weight | WPB: 107 kg (235.9 lbs) WPP: 42 kg (92.6 lbs) WSU: 20 kg (44.1 lbs) |
| Cable Lengths | WPB: 5.0 m (196.8 in) WPP: 2.0 m (78.7 in) WSU: 0.5 m (19.7 in) |
| Status LED's | WPB & WPP, stack light interface |
