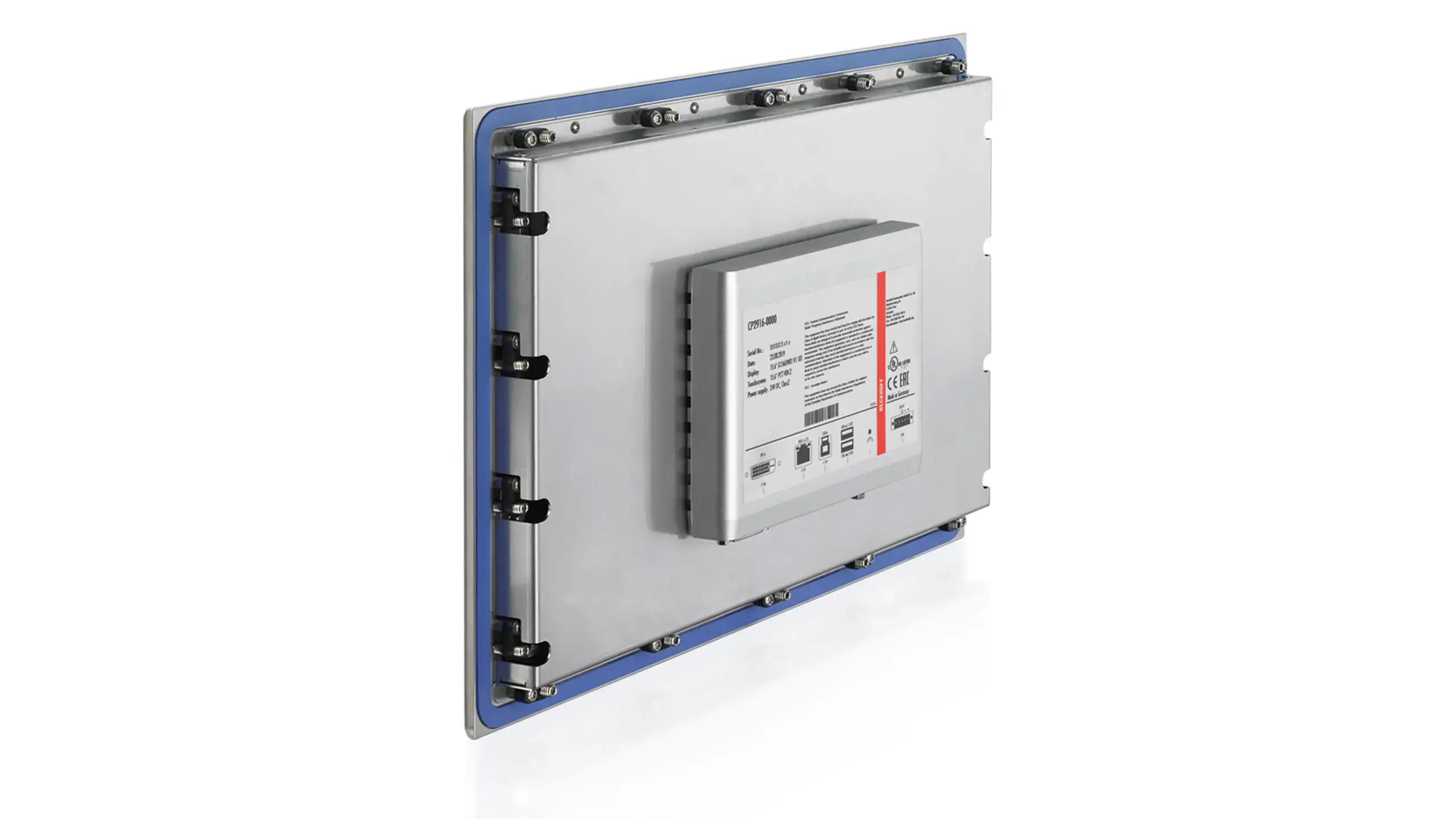

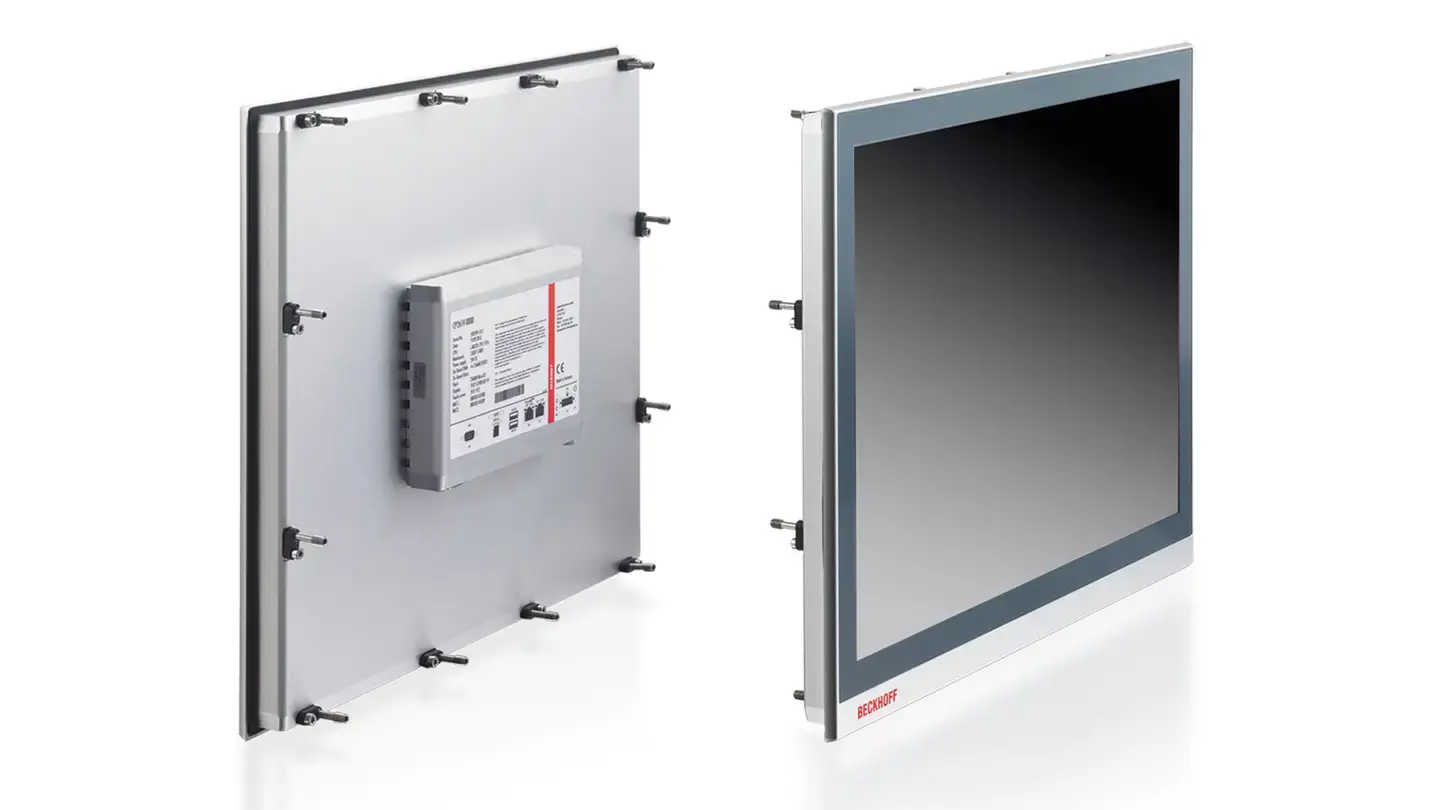

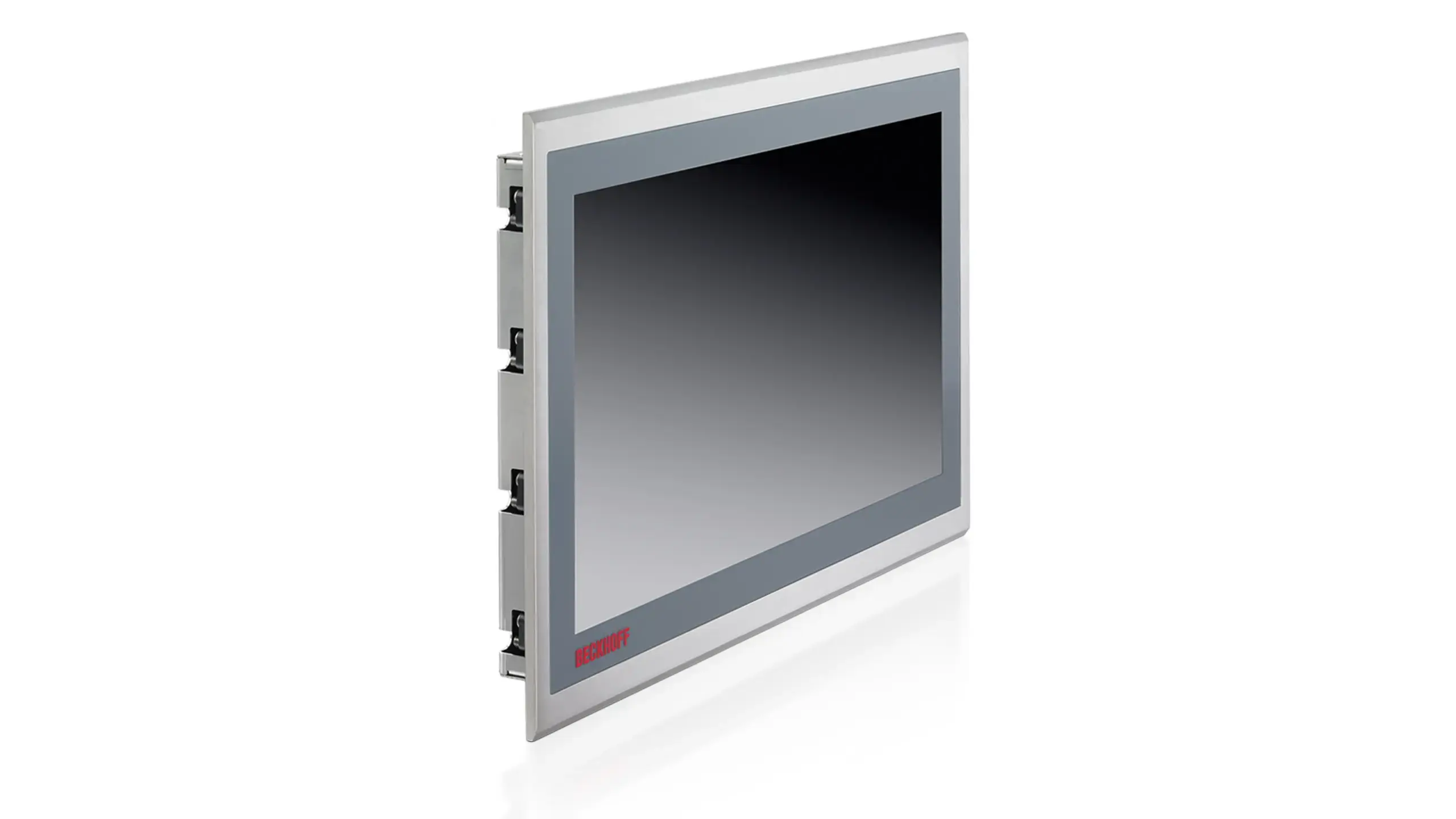

The CP29xx-0010 is a premium multi-touch embedded control panel featuring advanced CP-Link 4 interface technology, engineered for high-performance industrial environments.
Modern control panel technology transcends the selection of touch technology, forming the foundation for machine or plant operation. In industrial environments, the transmission of image and touch signals, alongside power or other digital signals, must be flawless and continuous – both mechanically and electrically – over extended distances.
| Technical Data | CP29xx-0010 Specifications | Options |
|---|---|---|
| Device Type | Multi-touch built-in Control Panel with CP-Link 4 interface | |
| Housing | Aluminum housing with glass front | Stainless steel housing with glass front at 7", 12.1", 15", 15.6", 18.5" and 21.5" display |
| Display Size / Resolution | 7" 800x480, 12" 800x600, 12.1" 1280x800, 15" 1024x768, 15.6" 1366x768, 18.5" 1366x768, 19" 1280x1024, 21.5" 1920x1080, or 24" 1920x1080 | |
| Touch Screen | Multi-finger touch screen | |
| Protection Rating | Front side IP65, rear side IP20 | |
| Connection Tech | CP-Link 4 allows remote connection up to 100 m to the PC via Cat.6A cable. Transmits USB 2.0 (100 Mbit/s) and DVI. Integrated or separate 24 V DC power. | |
| Interfaces | RJ45 for CP-Link 4, 2 x USB 2.0 | 1 x USB in the front |
| Operating Temp | 0 to 50°C | |
| Installation | Pull-out clamping levers for fast installation without loose parts | |
| Power Supply | 24 V DC |
