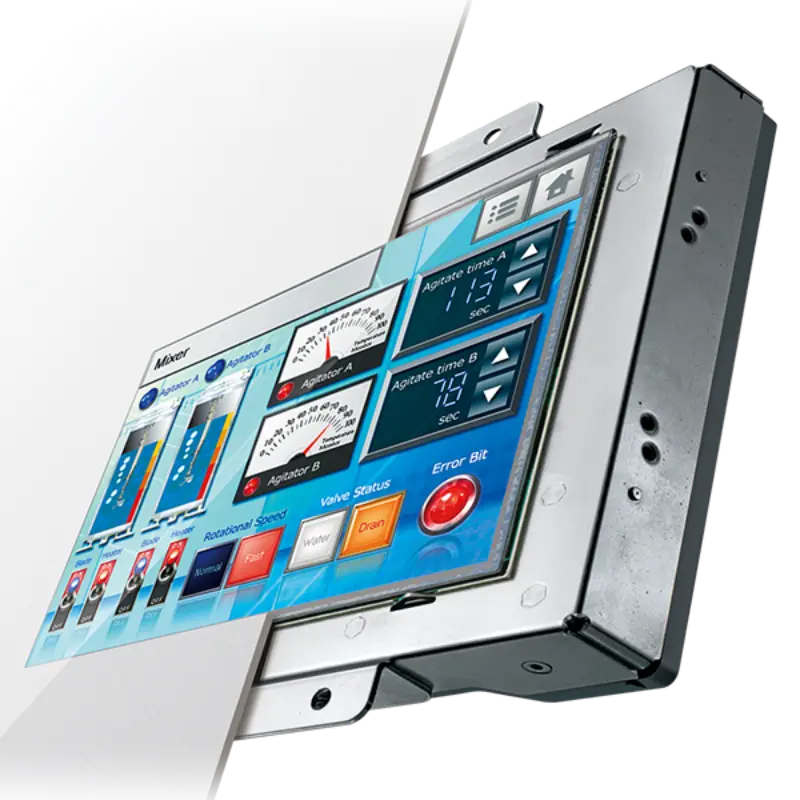

The GP4000R series features concealed panel bezels on the control panel, enabling seamless integration with any equipment design. The benefits of flush mounting include preventing dust and mould accumulation, making it suitable even for medical equipment, food production machinery, and other applications with stringent hygiene requirements.

Send Inquiry

Product Description

Overview Specifications Models Delivery Information Manuals + resources

The Pro-face PFXGP4601TADR is a rear-mount human-machine interface within the GP4000R series. Below is the comprehensive product overview:

Display

Type: TFT color LCD
Size: 12.1 inches
Resolution: 800x600 pixels (SVGA)
Effective Area: 246.0mm (W) x 184.5mm (H)
Colors: 65,536 colors (no blink) / 16,384 colors (blink)
Backlight: White LED (Service life: 50,000+ hours at 25°C before brightness drops to 50%)

Touch Screen

Uses analog resistive touch-screen technology
No-grid design type for seamless inputs
Provides a highly smooth touch operation experience

Electrical Details

Rated Input Voltage: 24VDC
Input Voltage Range: 19.2 - 28.8VDC
USB Power Output: 5VDC ±5% via 1 USB Type-A port (USB 2.0 compliant)

Interfaces

Serial Ports: 2x 9-pin D-sub connectors (RS-232C/RS-422/RS-485)
Ethernet Port: 1x RJ45 (IEEE 802.3i/IEEE802.3u, 10Base-T/100Base-TX)
USB Ports: 1x USB Type-A and 1x USB Mini-B
Card Slot: Equipped with 1x SD card slot

Mechanical & Protection

Mounting Method: Rear-mount installation
Protection Level: IP65 front-side dust and water jet resistance
Ideal for harsh, demanding industrial environments

Software & Functions

Programming: GP-Pro EX software
Supports protocol connections with over 100 different PLCs
Ethernet Multi-link: Easily add sub-displays without altering controller settings
Remote Monitoring: Supports remote monitoring via GP-ViewerEX software

Item	Details
Model Number	PFXGP4601TADR
Product Series	GP4000R Series
Display Type	TFT Color LCD
Display Size	12.1 inches
Display Resolution	800×600 pixels (SVGA)
Display Colors	65,536 colors (no blink) / 16,384 colors (blink)
Backlight	White LED
Touch Panel Type	Resistive Film (Analog)
Touch Panel Resolution	1,024×1,024
Touch Panel Lifetime	1,000,000 times or more
Rated Input Voltage	24 VDC
Input Voltage Limits	19.2 - 28.8 VDC
Power Consumption	17 W or less
Communication Interfaces	2×9-pin D-sub connectors (Serial COM1 + COM2; 7/8-bits)
	1×RJ45 connector (Ethernet)
	2×USB connectors (1×USB Type A + 1×USB Mini-B)
	1×SD card slot
Communication Protocols	RS-232C, RS-422, RS-485, Ethernet
Operating Temperature Range	0 - 55°C (32 - 131°F)
Storage Temperature Range	-20 - 60°C (-4 - 140°F)
Protection Grade	IP65 (Front Panel)
Dimensions	W302 x H228 x D56.6mm (W11.89 x H8.98 x D2.23 in.)
Memory	32 MB Flash EEPROM
	132 KB Flash EEPROM logic program area (15,000 steps / extendable to 60,000 steps)
	320 KB SRAM screen backup
	64 KB SRAM variable backup

Models: Pro-face GP4000R Series PFXGP4601TADR Rear Mount HMI

Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.

Pro-face GP4000R Series PFXGP4601TADR Rear Mount HMI

Pro-face GP4000R Series PFXGP4601TADR Rear Mount HMI Datasheet.pdf
Download

Frequently Asked Questions (FAQ)

What are the display specifications of the Pro-face PFXGP4601TADR HMI?

The PFXGP4601TADR features a 12.1-inch TFT color LCD with an SVGA resolution of 800x600 pixels. It is equipped with a white LED backlight providing a service life of at least 50,000 hours under standard operation.

What input voltage is required for the PFXGP4601TADR HMI?

The device operates on a rated input voltage of 24 VDC, with acceptable input voltage limits spanning from 19.2 to 28.8 VDC.

Which software is used to program this rear-mount HMI?

Screen and logic programming can be developed using the GP-Pro EX software, which allows connections to more than 100 types of PLCs and controllers.

Does the PFXGP4601TADR support remote system monitoring?

Yes, it features remote monitoring and operation support, which can be deployed using GP-ViewerEX software to access site data and generate reports.

What kind of industrial environment protection does this model offer?

The front panel of the PFXGP4601TADR has an IP65 protection rating, offering robust resistance to water jets and dust ingress in demanding settings.

What built-in interfaces are available for peripheral connectivity?

It includes 2x 9-pin serial COM ports (supporting RS-232C, RS-422, and RS-485), 1x RJ45 Ethernet port, 2x USB ports (1x Type A, 1x Mini-B), and 1x SD card slot.
