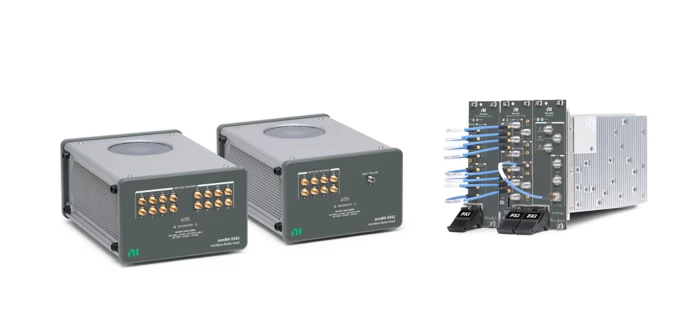

| Frequency range | ||
|---|---|---|
| IF IN/OUT 0, IF IN/OUT 1 | 5 GHz to 21 GHz | |
| TRX ports (Transmit) | 22.5 GHz to 44 GHz | |
| TRX ports (Receive) | 22.5 GHz to 44 GHz | |
| Frequency bandwidth | 1 GHz within the specified frequency ranges | |
| Tuning resolution | 4.45 uHz | |
| Table 2. Default LO Step Size | ||
| Frequency Range | Step Size | |
| Onboard | Secondary | |
| 5 GHz to 14.2 GHz | 2 MHz | — |
| >14.2 GHz to 21 GHz | 4 MHz | — |
| 22.5 GHz to 44 GHz | <1 Hz | 8 MHz |
| Table 3. PXIe-5653 Frequency Lock Time, Typical | ||
| Frequency Step Size | Frequency Lock Time (ms) | |
| ≤25 MHz | 0.85 | |
| ≤50 MHz | 1.1 | |
| ≤75 MHz | 1.35 | |
| ≤80 MHz | 1.35 | |
| ≤90 MHz | 1.35 | |
| ≤100 MHz | 1.35 | |
| ≤250 MHz | 1.8 | |
| ≤500 MHz | 6 | |
| ≤1.0 GHz | 10 | |
| ≤2.0 GHz | 13 | |
| ≤3.0 GHz | 15 | |
| ≤5.1 GHz | 17 | |
| Table 65. PXIe-5832 Power Requirements, Nominal | |||
|---|---|---|---|
| Module | +3.3 VDC | +12 VDC | Total Power (W) |
| PXIe-5820 | 3.3 A (10.89 W) | 6.0 A (72.0 W) | 82.89 |
| PXIe-3623 | 5.0 A (6.93 W) | 5.0 A (67.2 W) | 74.13 |
| PXIe-5653 | 1.10 A (3.63 W) | 4.0 A (48.0 W) | 51.63 |
| PXIe-5832 (combined instrument) | — | — | 208.65 |
| mmRH-5582 Power Requirements | |||
| Module | +12 VDC | Total Power (W) | |
| mmRH-5582 (Direct TRX Ports Only) | 3.8 A | 45.6 | |
| mmRH-5582 (Switched and Direct TRX Ports) | 4.1 A | 49.2 | |
| mmRH-5582 (Switched TRX Ports Only) | 4.4 A | 52.8 | |
| PXIe-5832 Physical Characteristics, Nominal | |||
|---|---|---|---|
| Module | Dimensions | Weight | |
| Grams | Ounces | ||
| PXIe-5820 | 3U, 2 slots | 795 | 28 |
| PXIe-3623 | 3U, 2 slots | 1,066 | 37.6 |
| PXIe-5653 | 3U, 2 slots | 1,076 | 37.8 |
| PXIe-5832 (combined instrument) | 3U, 6 slots | 2,937 | 103.4 |
| Table 68. mmRH-5582 Physical Characteristics, Nominal | |||
| Module | Dimensions | Weight | |
| Grams | Ounces | ||
| mmRH-5582 (Direct TRX Ports Only) | 21.9 cm × 15.5 cm × 9.9 cm (8.65 in. × 6.11 in. × 3.91 in.) | 2,940 | 103.7 |
| mmRH-5582 (Switched and Direct TRX Ports) | - | 3,132 | 110.5 |
| mmRH-5582 (Switched TRX Ports Only) | - | 3,324 | 117.3 |
