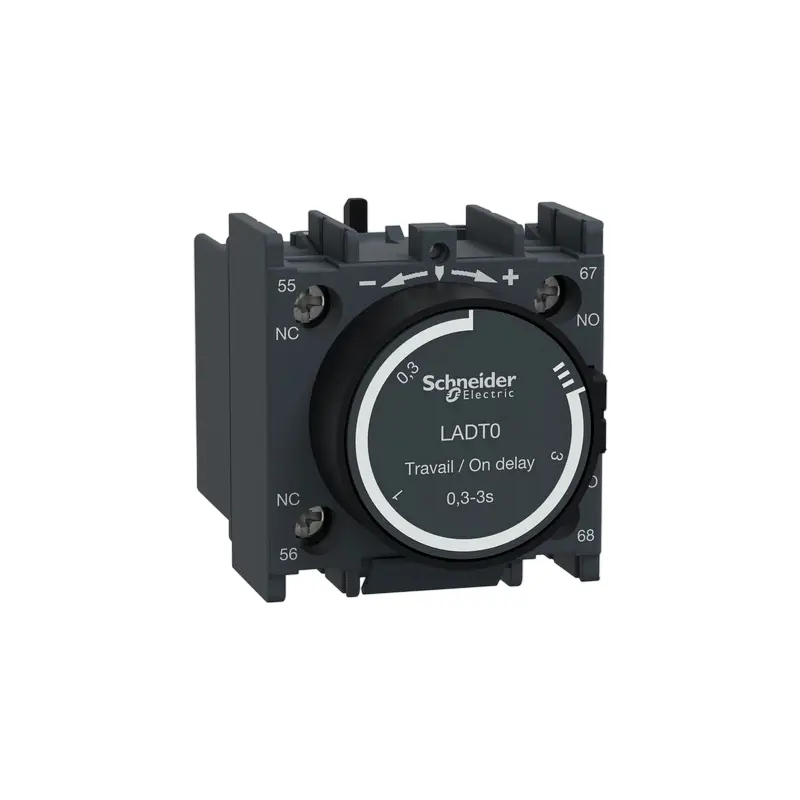

The 52297587 is a genuine on-delay contact block tailored for lifting equipment (cranes, hoists), serving as a key auxiliary electrical component in control circuits to realize time-delayed switching of signals.
It works with the main contactor or control relay of lifting equipment to provide time-delayed closing/opening of auxiliary circuits. Typical applications include delaying the start of auxiliary mechanisms (e.g., cooling fans, lubrication pumps) after the main motor starts, or delaying the activation of protective devices (e.g., overload alarms) to avoid false triggers from instant current surges. It ensures sequential and stable operation of the equipment’s electrical system.
As a genuine part, it perfectly fits original control components (e.g., contactors of the same series), ensuring no mismatch in installation and circuit connection.
Adopts precision timing mechanisms with stable delay accuracy, unaffected by industrial site voltage fluctuations or temperature changes.
Sealed structural design resists dust, vibration, and humidity in workshops/warehouses, matching the harsh operating conditions of lifting equipment.
Standardized snap-on design allows quick disassembly and replacement without complex tools, reducing equipment downtime during maintenance.
It is mainly used for maintenance and replacement of CXT series hoists, small-to-medium gantry cranes, and overhead cranes. When the original time-delay contact block fails (e.g., inaccurate delay, contact failure), replacing it with 52297587 restores the normal sequential control of the equipment’s electrical system. For exact parameters (e.g., specific delay range, contact quantity), confirm using the part number 52297587.
| Technical Parameters | Inferred Specifications | Notes |
|---|---|---|
| Product Model | 52297587 On-Delay Contact Block | Genuine spare part for lifting equipment |
| Function Type | On-delay (time-delayed closing/opening) | Auxiliary time control for control circuits |
| Delay Range | 0.1 – 30 seconds (adjustable) | Covers common auxiliary circuit timing needs of lifting equipment |
| Contact Configuration | 1NO + 1NC (Standard) | Optional 2NO/2NC based on equipment control logic (reference brand norms) |
| Rated Voltage | 230V AC / 400V AC | Matches mainstream lifting equipment control circuit voltage |
| Rated Current | 6 – 10A | Suitable for low-current auxiliary signal transmission |
| Installation Type | Snap-on mounting | Compatible with standard contactor/relay bases |
| Operating Temperature Range | -10 °C to +40 °C | Adapts to industrial workshop/warehouse environments |
| Voltage Frequency Compatibility | 50/60Hz | Universal for global industrial power supply standards |
| Protection Rating | IP20 | Basic dust protection for control cabinet internal use |
| Material of Contact | Silver alloy | Ensures wear resistance and stable contact for frequent operations |
Setting Range: 0.1…3s | Main Contacts: 1 NO + 1 NC | Rated Operational Current: 10A | Rated Operational Voltage: 690VAC | Block Mounting Position: Front | Relay Range: Tesys CAD/D/F
Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.
It serves as an auxiliary electrical component in control circuits to realize time-delayed switching of signals, helping prevent false triggers from instant current surges and ensuring sequential operation.
The adjustable delay range is 0.1 to 30 seconds, covering standard timing needs for auxiliary circuits in lifting equipment.
It is designed for standard contactor/relay bases, particularly compatible with CXT series hoists, small-to-medium gantry cranes, and overhead cranes.
It features a standard 1NO + 1NC contact configuration made of silver alloy, which ensures wear resistance and stable contact during frequent operations.
It has an operating temperature range of -10 °C to +40 °C with an IP20 protection rating, making it suitable for standard dust-protected control cabinets in workshops or warehouses.
It features a standardized snap-on mounting design, allowing for quick, tool-free installation and replacement to minimize equipment downtime.
