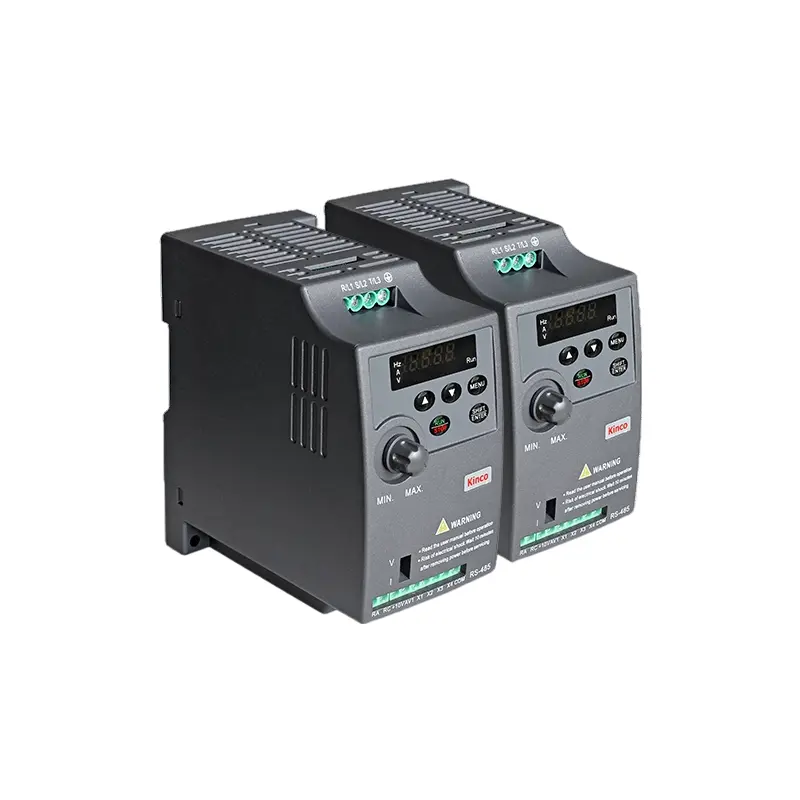

| Input |
Rated Voltage / Frequency |
Single-phase, 220VAC, 50Hz/60Hz; Three-phase, 380VAC, 50Hz/60Hz; Three-phase, 220VAC, 50Hz/60Hz |
| Applicable Voltage Range |
4T: 320V~460V; 2T/2S: 180V~260V; Voltage unbalancedness: <3%; Frequency tolerance: ±5% |
| Output |
Rated Voltage |
0 ~ Rated input voltage |
| Frequency |
0Hz~300Hz |
| Overload Capacity |
G Type: 150% 1 minute, 180% 10 seconds; L Type: 110% 1 minute, 150% 1 second |
| Control Characteristics |
Control Method |
Vector control without PG, Vector control with PG, V/F control |
| Modulation Method |
Space vector PWM modulation |
| Starting Torque |
0.5Hz: 150% of rated torque (vector control without PG), 0.0Hz: 200% of rated torque (vector control with PG) |
| Frequency Accuracy |
Digital setting: Max. frequency × ±0.01%; Analog setting: Max. frequency × ±0.2% |
| Frequency Resolution |
Digital setting: 0.01Hz; Analog setting: Max. frequency * 0.05% |
| Torque Boost |
Manual torque boost: 0%~30.0% (Only V/F mode is valid) |
| V/F Pattern |
4 patterns: 1 pattern is V/F curve setting by users. 3 patterns are drop torque characters curve (2.0 power, 1.7 power, 1.2 power) |
| Acceleration / Deceleration Curve |
Linear or S-curve acceleration and deceleration mode: Four kinds of acceleration and deceleration time |
| Auto Current Limit |
The current is automatically limited during operation to prevent frequent over-current fault tripping |
| Customized Function |
Jogging |
Jogging frequency range: 0.00Hz~50.00Hz. Jogging acceleration/deceleration time: 0.1~60.0s. |
| Multiple Speed Operation |
Implement multiple speed operation by digital inputs. |
| Operation Function |
Operation Command |
Keypad setting, Terminal setting, Communication setting |
| Frequency Command |
Digital setting, Analog voltage setting, Analog current setting, Pulse setting |
| Auxiliary Frequency |
Implement flexible auxiliary frequency trim and frequency synthesis. |
| Pulse Output |
0.1kHz~100kHz pulse square wave signal output, can achieve the set frequency, output frequency and other physical quantities output |
| Analog Output |
2 channels analog output (0/4-20mA or 0/2-10V); Output setting frequency, output frequency and so on |
| Operation Panel |
LED Display |
Display setting frequency, output frequency, output voltage, output current and so on, about 20 parameters. |
| Parameters Copy |
Copy parameters by operation panel. |
| Keys Lock |
Lock part of keys or all the keys. Define the function of part of keys to prevent misoperation |
| Protection Function |
Overcurrent protection, Overvoltage protection, Undervoltage protection, Overheat protection, Overload protection, Open phase protection (optional), etc. |
| Environment |
Operating Site |
Indoor, free from direct sunlight, dust, corrosive gas, combustible gas, oil mist, water vapor, drip or salt |
| Altitude |
Derated above 1000m, the rated output current shall be decreased by 10% for every rise of 1000m. |
| Ambient Temperature |
-10℃~+40℃ (The ambient temperature is between 40℃ and 50℃, reduce the rating for use) |
| Humidity |
5%~95%RH, No water condensation |
| Vibration |
Less than 5.9 m/s² (0.6g) |
| Storage Temp. |
-40℃~+70℃ |
| Protection Class |
IP20 |
| Cooling Method |
Self cooling, air cooling, with fan control |
| Installation Method |
Wall mounted, cabinet mounted |
| Efficiency |
45kW or below: >93%; 55kW or above: >95% |
