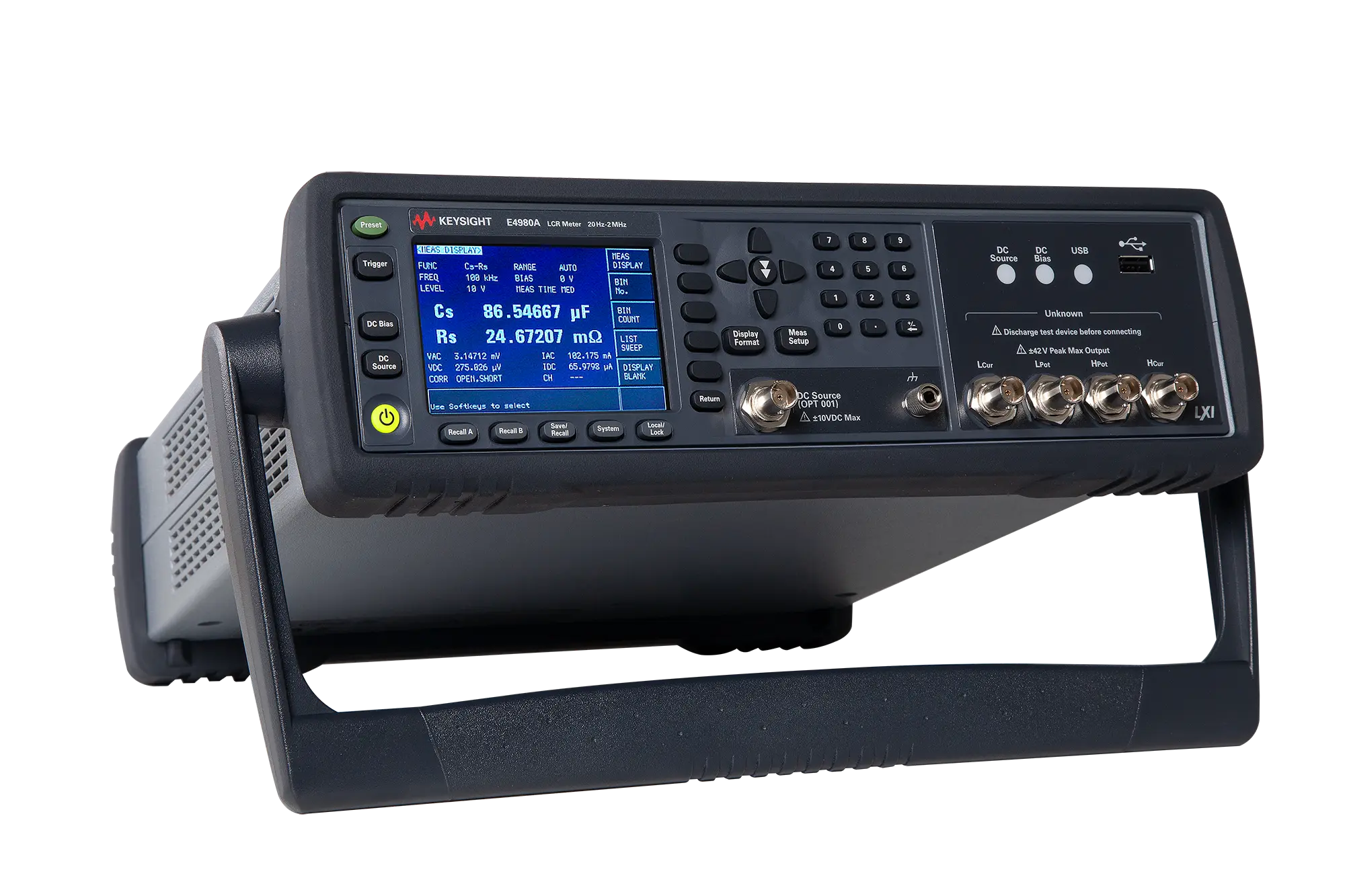

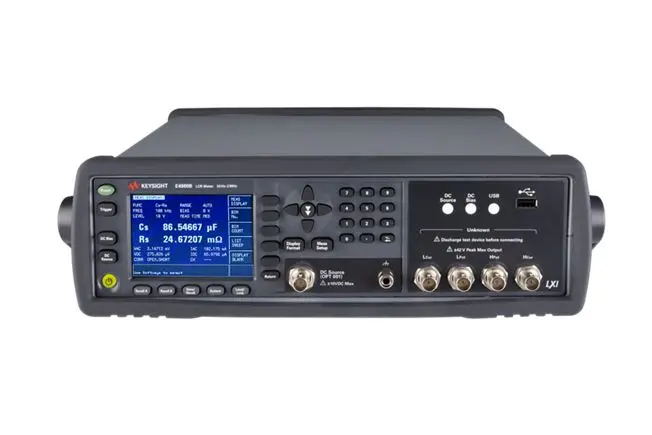

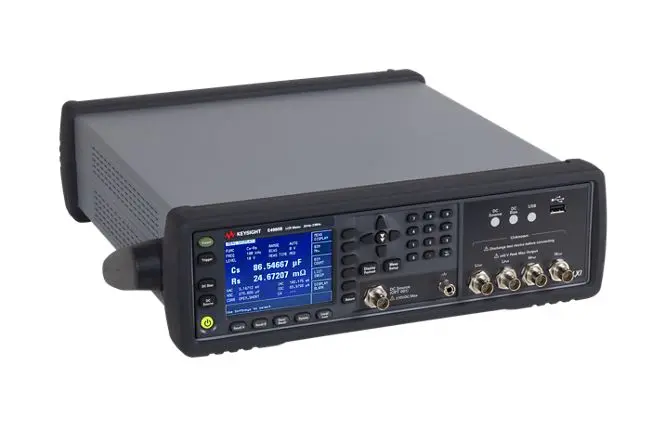

Best Keysight E4980B Accurate LCR Measurement Manufacturer, Manufacturers

For a variety of component measurements, Keysight's E4980B precision LCR meter offers the optimum balance of speed, accuracy, and adaptability.

Send Inquiry

Product Description

Overview & Features

For a variety of component measurements, the Keysight E4980B precision LCR meter combines accuracy, speed, and adaptability. The E4980B, which provides quick measurement speed and performance at both low and high impedance ranges, is a crucial instrument for general R&D and manufacturing testing of components and materials.

Regularity Four-digit resolution in any range between 20 Hz and 2 MHz.

Fundamental Precision At low and high impedance, 0.05% basic accuracy and precise measurement repeatability are provided.

The DC Bias Enhancement of DC bias for versatile testing conditions.

High-Speed Measurement Fast measurements at speeds of 5.6 ms to optimize throughput.

Sweep Capability List measuring sweep with 201 points for detailed analysis.

Connectivity Flexible PC connectivity options including LAN, USB, and GPIB.

Your design and testing efficiency is improved by the flexible LAN, USB, and GPIB PC interface. From fixture setup to report generation, the E4980B and Keysight N1500A-005/006 materials measurement suite streamline the measurement process for materials measurements.

General Specifications

Power Source & Environment
Power Source
Rated Voltage	100-240 VAC
Voltage Range	90-264 VAC
Rated Frequency	50 / 60 Hz
Frequency Range	47-63 Hz
Power Consumption	Max. 150 VA
Operating Environment
Temperature	0-55°C
Humidity (≤ 40 °C, no condensation)	15%-85% RH
Altitude	0 m-2000 m
Storage Environment
Temperature	-20-70°C
Humidity (≤ 60 °C, no condensation)	0% - 90% RH
Altitude	0 m-4572 m

Model Selection

Frequency Range	Model Number and Option
20 Hz to 2 MHz	E4980B
20 Hz to 1 MHz	E4980BL-102
20 Hz to 500 kHz	E4980BL-052
20 Hz to 300 kHz	E4980BL-032

Physical Specifications

Outer Dimensions 375 (width) x 105 (height) × 390 (depth) mm (nominal)

Standard Weight 4.9 kg (without Front, Rear Bumper, and Handle)

Full Configuration Weight 5.8 kg (with Front, Rear Bumper, and Handle)

Documentation & Resources

Keysight E4980B Precision LCR Meter Datasheet

Keysight E4980B E4980BL Precision LCR Meter Datasheet Reference

Frequently Asked Questions

What is the frequency range of the E4980B LCR Meter?

The E4980B offers a broad frequency range with four-digit resolution anywhere between 20 Hz and 2 MHz.

What is the measurement accuracy of this device?

It provides a basic accuracy of 0.05% at both low and high impedance ranges, ensuring precise and repeatable measurements.

How fast can the E4980B perform measurements?

The device is capable of high-speed measurements as fast as 5.6 ms, making it ideal for high-throughput manufacturing environments.

What connectivity options are available for PC integration?

The E4980B supports multiple flexible interface options including LAN, USB, and GPIB for seamless PC connectivity and automated testing.

Can it be used for materials measurement?

Yes, when combined with the Keysight N1500A-005/006 materials measurement suite, it streamlines the entire process from setup to report generation.

What are the different frequency options available in the E4980BL series?

The series includes models for 300 kHz (E4980BL-032), 500 kHz (E4980BL-052), and 1 MHz (E4980BL-102).
