| Parameter | Description |
|---|---|
| Model | Matrix 120 210-100 WVGA SER+USB 1D Matrix 120 210-110 WVGA SER+ETH 1D Matrix 120 210-000 WVGA SER+USB STD Matrix 120 210-001 WVGA SER+USB ESD Matrix 120 210-010 WVGA SER+ETH STD Matrix 120 210-011 WVGA SER+ETH ESD Matrix 120 310-001 1.2MP SER+USB ESD Matrix 120 310-011 1.2MP SER+ETH ESD |
| Sensor | WVGA (752x480 px) with global shutter CMOS sensor 1.2 MP (1280x960 px) with global shutter CMOS sensor |
| Reading Range | Matrix 120 - WVGA: 25-190mm (1.0-7.5 in) Matrix 120 - MP: 25-220mm (1.0-8.7in) |
| Focus System | Manual switch of 3 preset focal lengths (45, 70, 125mm - WVGA; 45, 80, 125mm - MP) |
| Frame Rate | Up to 57 frames per second (WVGA model), up to 36 frames per second (MP model) |
| Motherboard Memory | 128 MB |
| Readable Barcodes | 1D codes: All standard 1D symbologies 2D codes: Data Matrix, QR code, Micro QR, Maxicode, Aztec Postal codes: Royal Mail, Japan Post, Planet, Postnet, etc. |
| Barcode Orientation | Omnidirectional for any code type |
| Multi - barcode Reading | Yes |
| Power Supply/Power Consumption | 5-30 VDC; 1.6 to 2.4 W |
| Protection Level | IP65 |
| Temperature Range | 0-45℃ / 32-113°F |
| Housing Material | Zama (zinc alloy) - plastic protective window cover |
| Dimensions | 45.4x31.1x23.5 mm (1.8x1.2x1 in) (SER+USB model) 45.4x48.5x23.5 mm (1.8x1.9x1 in) (SER+ETH model) |
| Weight | 117 g (4.1 oz) with cable (SER+USB type) 200 g (7.1 oz) with cable (SER+ETH type) |
| ESD Safety | Yes |
| Embedded Communication Interface | RS-232/RS-422/USB 2.0 high speed (USB-CDC, USB-HID) Main RS-232 or RS-422 FD (2400 to 115200 bit/s) |
| Ethernet | Embedded (only SER+ETH models) 10/100 Mbit/s |
| Digital Input | Two inputs definable by software programming (PNP/NPN) |
| Digital Output | Two outputs definable by software programming (PNP/NPN) |

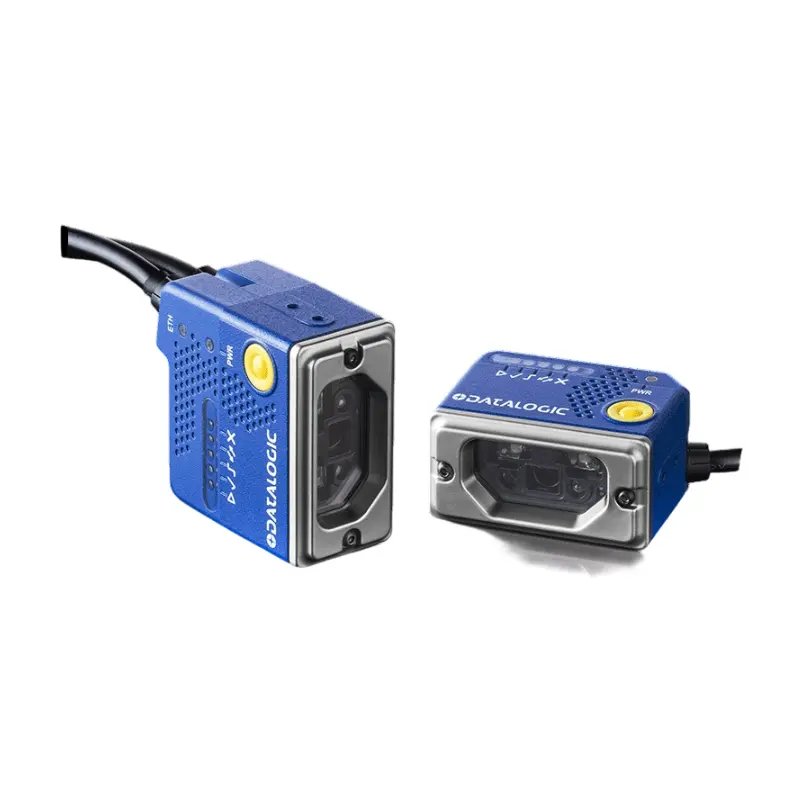

Models: Datalogic Stationary Industrial Scanners 2D Imager Readers Matrix 120
Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.
It is the smallest ultra-compact industrial 2D reader available with an integrated Ethernet interface. Additionally, its red-light model is the market's only fixed industrial scanner capable of reading watermark codes.
The Matrix 120 reads all standard 1D codes, 2D codes (such as Data Matrix, QR Code, Micro QR, Maxicode, Aztec), and various postal codes including Royal Mail, Japan Post, Planet, and Postnet.
Yes, it features IP65 industrial protection, is constructed with durable Zama (zinc alloy) housing, operates in temperatures from 0-45°C, and offers sulfur gas-resistant configurations for harsh production environments like tire manufacturing.
It features RS-232, RS-422, and high-speed USB 2.0 (USB-CDC and USB-HID) interfaces. Specific models also include embedded 10/100 Mbit/s Ethernet.
Yes, the Matrix 120 is fully capable of reading multiple barcodes simultaneously, which is ideal for packaging and process traceability applications.
