| Specification | Details |
|---|---|
| Order Number | 0.601.36A.2L0 |
| Rated Input Power | 1300W |
| No-load Speed | 12000 rpm |
| Weight | 2.8 kg (without cable) |
| Saw Blade Diameter | 110 mm |
| Saw Blade Bore | 20.0 mm |
| Cutting Depth (90°) | 34 mm |
| Cutting Depth (45°) | 22 mm |
| Tool Dimensions (Width) | 210 mm |
| Tool Dimensions (Length) | 225 mm |
| Tool Dimensions (Height) | 175 mm |
| Dust Insulation | Good dust insulation, with specially designed ventilation holes and flat bearing flange with channel design to prevent dust accumulation |
| Handle Design | Ergonomic handle with dimples and soft-grip surface for anti-slip and extra handling comfort |
| Cutting Line Vision | Clear view of the cutting line at 45° and 90°, with a compact and adjustable base plate for 45° bevel cutting |

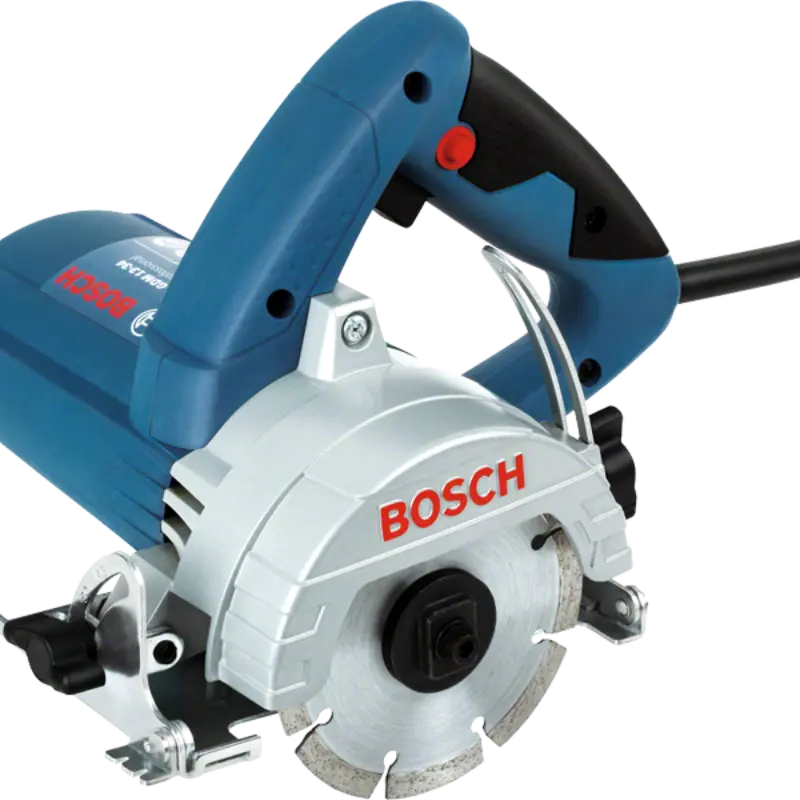

The marble cutter is powered by a high-performance 1300W input motor that delivers enough power for stone cutting tasks.
It has a maximum cutting depth of 34 mm when cutting at a 90° angle, and up to 22 mm when executing a 45° bevel cut.
Yes, it features specialized air ventilation and a flat bearing flange channel layout designed to redirect and minimize dust accumulation, protecting internal components.
While optimized for marble, granite, and tile, the machine can also be fitted with specialized blades suitable for wood cutting.
It weighs 2.8 kg (excluding the cable), which provides a balanced and fatigue-free operational experience during long hours.
The machine uses a standard 110 mm diameter saw blade with a 20.0 mm bore size.
