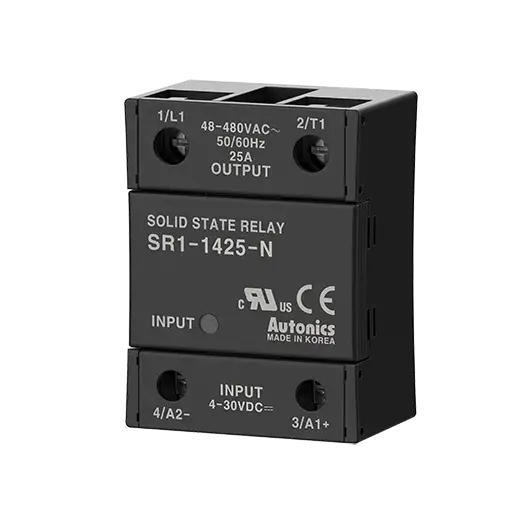

Autonics SR1-1425-N is a single-phase heat sink-separated solid-state relay.
| Parameter | Value / Detail |
|---|---|
| Control phase | Single-phase |
| Mounting type | Panel |
| Rated input voltage | 4-30VDC specialstring |
| Rated load voltage | 48-480VAC~ (50/60Hz) |
| Dielectric strength | 2500VAC~ 50/60Hz 1 min (Input-Output, Input/Output-Case) |
| Rated load current | 25A |
| Function | Zero cross turn-on |
| Environment_Ambient temperature | -30 to 80℃, storage: -30 to 100℃ (The rated load current capacity is different depending on ambient temperature. Refer to SSR Derating Curve.) |
| Environment_Ambient humidity | 45 to 85% RH, storage: 45 to 85% RH |
| Weight | Approx. 111g(approx. 73g) |
Autonics SR1-1425-N Solid State Relays SR1 Series SR1-1425-N
The Autonics SR1-1425-N solid state relay does not incorporate a battery. Its operating power is supplied via the input voltage, with a rated input voltage range of 4-30VDC, requiring no additional battery power.
Net Weight: Approx. 111g (unit only: approx. 73g)
